Light Bee Specifications

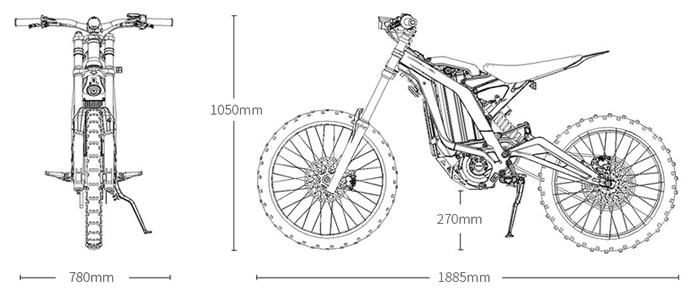

| Dimensions & Weight | ||
|---|---|---|
| Length: | 1870 | mm |
| Width: | 780 | mm |
| Height: | 1040 | mm |
| Max. ground clearance: | 270 | mm |
| Wheelbase: | 1260 | mm |
| Seat height: | 810 | mm |
| Vehicle weight: | 50 | kg |
| Weight distribution of Fr. Wheel axle: | 24 | kg |
| Weight distribution of Rr. Wheel axle: | 26 | kg |
| Max. load capability: | 100 | kg |
| Angle & Stroke | ||
|---|---|---|
| Forward inclining angle: | 26 | ° |
| Steering angle: | 46 | ° |
| Front Absorbers stroke: | 200 | mm |
| Rear Absorber/Wheel stroke: | 87/210 | mm |
| Performance & Transmission | |
|---|---|
| Max. motor rotation speed: | 4500rpm |
| Cooling method: | Air-cooled |
| Climbing angle: | 45° (Light Bee X) |
| Max. speed: | 73km/h |
| Range: | 100km @ 20km/h |
| Max. torque: | 200Nm |
| Gearshift type and transmission ratio: | 1:7.6 |
| Transmission type: | Belt + Chain |
| Belt brand and model: | ContiTech HTD 8M CXA |
| Rear sprocket: | 48T-106 (Standard) |
| Frame & Shock Absorbers | |
|---|---|
| Frame type: | Aluminum alloy double cradle design |
| Frame colour options: | Grey, Silver, Green, Red, Orange, Yellow, Blue |
| Front shock absorber : | DNM USD-8S Forks |
| Shock Absorber Fr.: | Double-tube telescopic shock absorber |
| Shock Absorber Rr.: | Multi-link central shock absorber 350lbs (Standard) |
| Tyres & Brakes | |
|---|---|
| Tyre size Fr.: | 70/100-19 |
| Tyre size Rr.: | 70/100-19 |
| Wheel type Fr.: | 19 x 1.4 |
| Wheel type Rr.: | 19 x 1.4 |
| Brake type Fr.: | Bilateral 4 piston hydraulic disc brake |
| Brake type Rr.: | Bilateral 4 piston hydraulic disc brake |
| Electronic Parts | |
|---|---|
| Controller type: | Square wave controller or sine wave controller. The motor controllers can use 48V and 60V Sur-Ron battery packs. |
| Horn: | Electric horn |
| Charger type: | 48V charger, 58.8V @ 5A, 6 hour normal charge 48V charger, 58.8V @ 10A, 3 hour fast charge 60V charger, 67.2V @ 10A, 3 hour fast charge |
| Battery Pack 48 Volt: | Configuration: 14S10P Cells: 140 Knaptech 18650 2500mAh Capacity: 25Ah, 1200Wh |
| Battery Pack 60 Volt: |
Configuration: 16S11P Cells: 176 Panasonic NCR18650PF 2900mAh Capacity: 32Ah, 1920Wh |
| Headlight type: | LED |
| Brake light type: | LED |
| USB power source: | Single USB socket 2100mA (phone charger) |
| Dashboard: | IBN negative LCD display |
